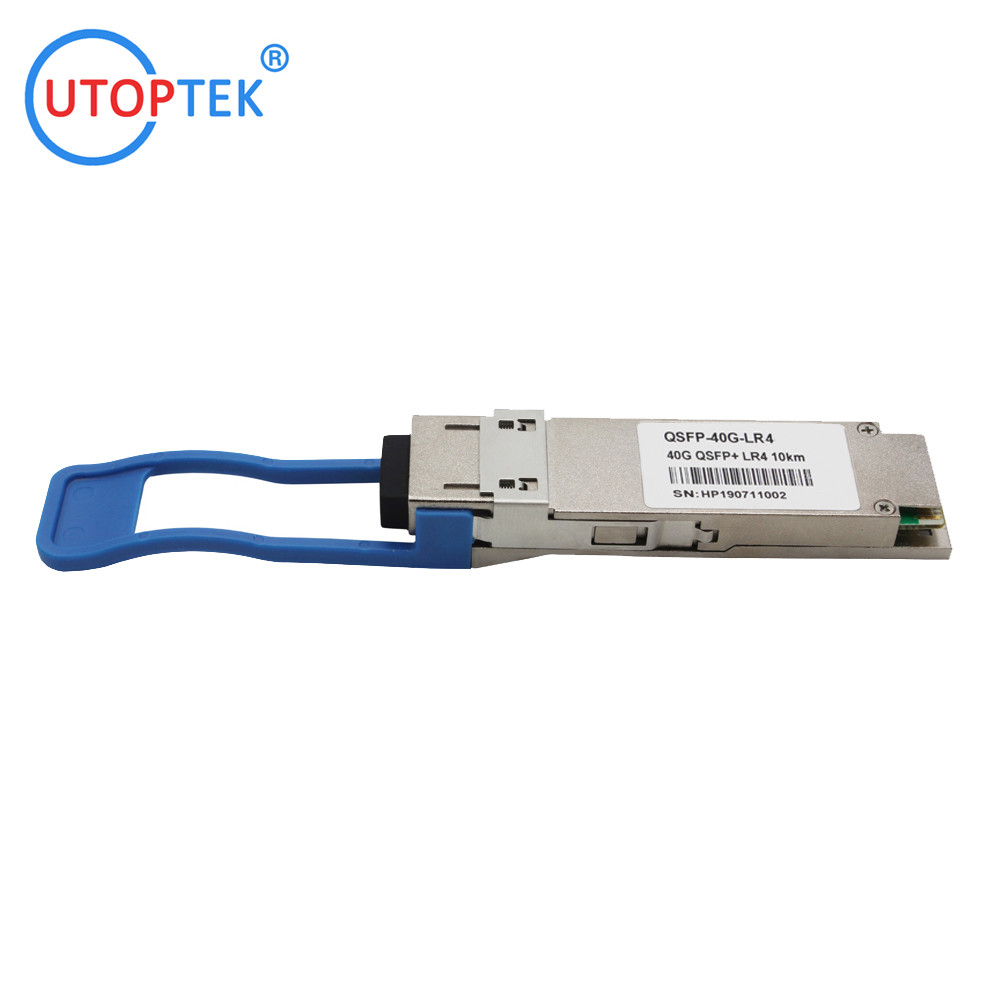

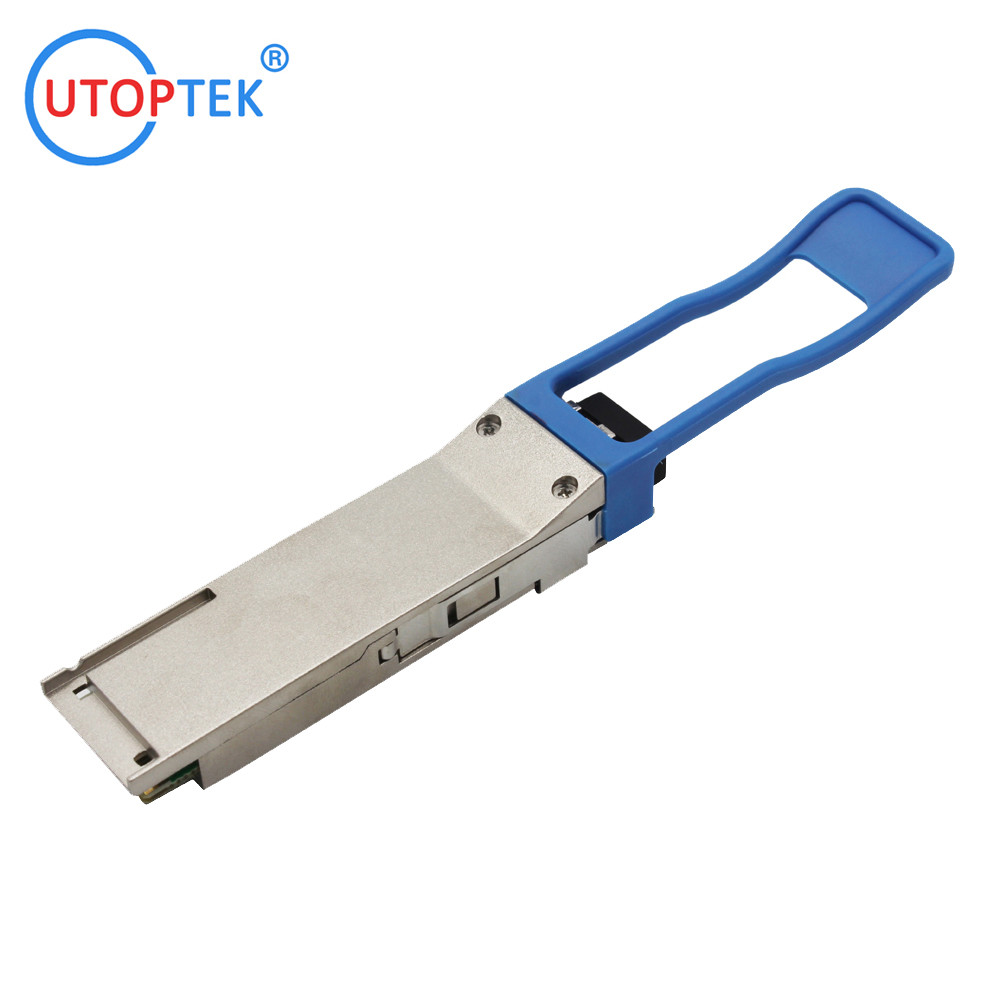

High quality QSFP 40G LR4 10KM 1310nm fiber Optical Transceiver Module

Product Categories

Shenzhen UTOP Technology Co., Ltd.

Contact Now

Name: High quality QSFP 40G LR4 10KM 1310nm fiber Optical Transceiver Module
Brand: UTOPTEK
Price: 1 USD

Brand Name : UTOPTEK

Model Number : QSFP-40G-LR4

Certification : CE FCC RoHs

Place of Origin : China

MOQ : 1piece

Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.

Supply Ability : 500pairs per month

Delivery Time : 1-2days

Packaging Details : 10pcs to one plastic plate

Transmission speed : 40Gb/s

Fiber Type : single-mode, Duplex LC

Distance : 10KM

DDM Function : Support

Power supply : 3.3V

Working Temperature : 0~70℃

Aggregate bandwidth : > 40Gbps

per channel bandwidth : 11.2Gbps

Compatible : Cisco,Huawei,HP,H3C,Juniper,Extreme etc..

Warranty : 3 years

Contact Now

40Gb/s LR4 10km QSFP+ Transceiver
Hot Pluggable, Duplex LC Connector, Single mode

High quality QSFP 40G LR4 10KM 1310nm fiber Optical Transceiver Module

1.Product Features:

2.Applications:

3.Technical specifications:

4.Optical Characteristics

Parameter	Symbol	Min	Typical	Max		Units	Notes
Wavelength Assignment	L0	1264.5	1271	1277.5		nm
	L1	1284.5	1291	1297.5		nm
	L2	1304.5	1311	1317.5		nm
	L3	1324.5	1331	1337.5		nm
Transmitter
Side Mode Suppression Ratio	SMSR	30				dB
Total Average Launch Power	PT			8.3		dBm
Average Launch Power, each Lane	PAVG	-7		2.3		dBm
Optical Modulation Amplitude (OMA), each Lane	POMA	-4		3.5		dBm	1
Difference in Launch Power between any Two Lanes (OMA)	Ptx,diff			6.5		dB
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane		-4.8				dBm
TDP, each Lane	TDP			2.6		dB
Extinction Ratio	ER	3.5				dB
Relative Intensity Noise	RIN			-128		dB/Hz	12dB reflection
Optical Return Loss Tolerance	TOL			20		dB
Transmitter Reflectance	RT			-12		dB
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}		{0.25,0.4,0.45,0.25,0.28,0.4}
Average Launch Power OFF Transmitter, each Lane	Poff			-30		dBm
Receiver
Damage Threshold, each Lane	THd	3.3				dBm	2
Total Average Receive Power				8.3		dBm
Average Receive Power, each Lane		-13.7		2.3		dBm
Receiver Reflectance	RR			-26		dB
Receive Power (OMA), each Lane				3.5		dBm
Receiver Sensitivity (OMA), each Lane	SEN			-11.5		dBm
Stressed Receiver Sensitivity (OMA), each Lane				-9.6		dBm	3
Difference in Receive Power between any Two Lanes (OMA)	Prx,diff			7.5		dB
LOS Assert	LOSA	-28				dBm
LOS Deassert	LOSD			-15		dBm
LOS Hysteresis	LOSH	0.5				dB
Receiver Electrical 3 dB upper Cutoff Frequency, each Lane	Fc			12.3		GHz
Conditions of Stress Receiver Sensitivity Test (Note 4)
Vertical Eye Closure Penalty, each Lane			1.9		dB
Stressed Eye J2 Jitter, each Lane			0.3		UI
Stressed Eye J9 Jitter, each Lane			0.47		UI

5.Factory Show:

High quality QSFP 40G LR4 10KM 1310nm fiber Optical Transceiver Module

6.Ordering Information:

High quality QSFP 40G LR4 10KM 1310nm fiber Optical Transceiver Module Images
